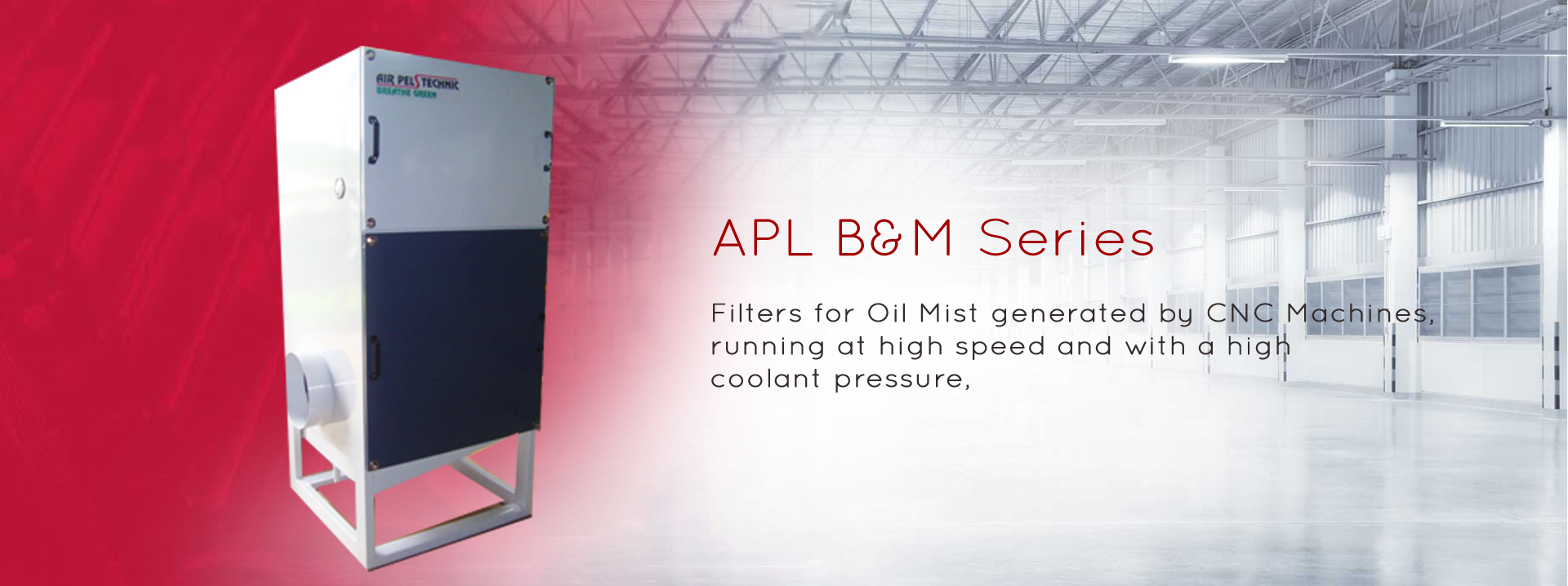

Filters for Oil Mist – APL B&M Series
If you have CNC machines, running at high speed and with a high coolant pressure, your machines will start to spread oil mist into the workplace. The oil mist consists of particles of small size and the coolant fog is high dense. It irritates your lungs, but also cost effect on your capital investments. Invest in B&M SERIES filters and the problems disappear at a low running cost.
| Model | Air flow | Motor | Dimension Floor space | Intake dia | Weight | Separation Efficiency |
|---|---|---|---|---|---|---|
| APL- 2200 | 2000 TO 2500 CMH | 1.5KW | 740 X 650 X 2500 HEIGHT | 200mm | 150 KG | 98.99% |
| APL- 3300 | 3300 TO 3600 CMH | 2.2KW | 740 X 650 X 2500 HEIGHT | 250mm | 170 KG | 98.99% |
| APL- 4400 | 4200 TO 4500 CMH | 3.2KW | 740 X 1300 X 2500 HEIGHT | 300mm | 250 KG | 98.99% |
| MODEL NO | APL-DPS-1100 | APL-DPS-2200 | APL-SPS-1100 | APL-SPS-2200 |
|---|---|---|---|---|
| AIR VOLUME UP TO Mcub/H | 800-1000 | 1500-2000 | 800-1000 | 1500-2000 |
| MAIN CONECTION KW | 0.5 | 1KW | 0.5 | 1KW |
| AIR INLET mm | 160 | 200 | 160 | 200 |
| LENGTH | 560 | 680 | 560 | 680 |
| WIDTH | 530 | 530 | 530 | 580 |
| HEIGHT | 1300 | 1500 | 950 | 1050 |
| WIEIGHT | 110 | 140 | 70 | 80 |
| IONIZER/COLLECTION quantity/type | 2 combind cell | 2 combined cell | 1 combined cell | 1 combined cell |
| APPLICATION KV | 12KV/6KV | 12KV/6KV | 12KV/6KV | 12KV/6KV |
| PLATE DISTANCE | 8mm | 8mm | 8mm | 8mm |
| NOISE LEVEL | 65 | 65 | 62 | 62 |
| MODEL NO | APL DRY -1100 | APL DRY – 2200 | APL DRY- 5500 |
|---|---|---|---|
| AIR VOLUME | 1200 -1500 CMH | 2000 CMH | 4000 CMH |
| MAIN CONECTION | 1.5 HP | 2 HP | 5 -7.5 HP |
| AIR INLET | 160 mm | 200 mm | 160mm X 2 |
| LENGTH | 550 | 650 | 1000 |
| WIDTH | 550 | 650 | 1000 |
| HEIGHT | 1500 | 1500 | 2200 |
| FILTER AREA | 10 SQ MTR | 20 SQ MTR | 40 SQ MTR |
| FILTER TYPE | CONICAL | CONICAL | CONICAL |
| NOISE LEVEL | 78 dbA | 78 dbA | 78 dbA |
| DUST BIN | 50 KG | 60 KG | 80 KG |
Oil Mist
Oil mist is caused by metalworking fluids that come into contact with fast rotating tools (e.g. milling and drilling procedures).
Why Oil Mist Filtration is Needed
- Oil mist may cause cancer by inhalation
- Oil mist causes slippery floors and collects dust on machines and walls.
- The requirements of the authorities are becoming stricter. It is important to invest in equipment that meets future requirements.
- Oil mist coats ventilation channels and can cause fires.
- Oil mist coats the heat exchanger, reducing the efficiency of the heat recover
